Pre Compressed Board & Electrical Insulation

• Application
• Electrical Insulation for Power Transformers and Switchgear

• Breakdown Voltage
• >60 kV/mm

• Coating Type
• Uncoated

• Color
• Light Brown

• Density
• 1.30 Gram per cubic centimeter(g/cm3)

• Feature
• High Mechanical Strength, Dimensional Stability, Oil Absorption

• Heat Conductivity
• 0.28 W/mK

• Installation Guideline
• Direct fitment and shaping as per transformer design

• Layer
• Single Layer

• Material
• High Quality Cellulose Insulating Fibres

• Max Withstanding Temperature
• up to 110C

• Product Type
• Insulating Pre Compress Press Board

• Rated Voltage
• Up to 1200 kV

• Size
• Custom Sizes Available

• Surface Treatment
• Smooth and Uniform

• Tensile Strength
• 80 N/mm2

• Thermal Conductivity
• 0.28 W/mK

• Thickness
• 0.8 mm to 5.0 mm

• Width
• Up to 2450 mm

• Application
• Transformer Winding

• Color
• Brown

• Material
• Kraft Paper

• Size
• 841 x 1189 mm

• Thickness
• 5 mm

• Application
• Transformers, Mechanical Parts

• Color
• Brown

• Material
• Wood Laminate Bakelite

• Product Type
• Sheet

• Thickness
• 3 mm

• Application
• Transformer, Electrical Insulation

• Breakdown Voltage
• Above 60 kV

• Coating Type
• Uncoated

• Color
• Brown

• Density
• 1.3 Gram per cubic centimeter(g/cm3)

• Feature
• High Mechanical Strength, Oil Resistance

• Heat Conductivity
• 0.3 W/mK

• Installation Guideline
• Install in dry, dust-free environment; avoid moisture exposure

• Layer
• Single Layer

• Material
• High Grade Kraft Cellulose Pulp

• Max Withstanding Temperature
• Up to 105C

• Product Type
• Insulating Pre Compress Press Board

• Rated Voltage
• Up to 36 kV

• Size
• As per requirement/custom size

• Surface Treatment
• Calendered/Smooth

• Tensile Strength
• Above 90 N/mm2

• Thermal Conductivity
• 0.3 W/mK

• Thickness
• 0.8 mm to 8 mm

• Width
• 100 mm to 3000 mm

• Application
• Transformer, Electrical Insulation

• Breakdown Voltage
• 24-40 kV/mm

• Coating Type
• Uncoated

• Color
• Light Brown

• Density
• 1.25 Gram per cubic centimeter(g/cm3)

• Feature
• Electrical Insulation, High Dielectric Strength

• Heat Conductivity
• 0.21 W/mK

• Installation Guideline
• Dry and Clean Installation Recommended

• Layer
• Single or Multi Layer

• Material
• High Quality Cellulose Fibre

• Max Withstanding Temperature
• Up to 105C

• Product Type
• Insulating Press Board

• Rated Voltage
• Up to 36 kV

• Size
• Customizable

• Surface Treatment
• Smooth, Calendered

• Tensile Strength
• 85-100 MPa

• Thermal Conductivity
• 0.21 W/mK

• Thickness
• 0.5 mm to 50 mm

• Width
• Up to 1200 mm

• Application
• Transformer, Motor, Generator, Electrical Insulation

• Breakdown Voltage
• >18 kV/mm

• Color
• Light Yellow

• Density
• 0.8 Gram per cubic centimeter(g/cm3)

• Feature
• High Dielectric Strength, Flame Retardant, Flexible

• Heat Conductivity
• 0.20 W/mK

• Installation Guideline
• Install in clean, dry environment and avoid creasing

• Layer
• Single

• Material
• Aramid Fiber (Nomex) Paper

• Max Withstanding Temperature
• 220C

• Product Type
• Electrical Insulation Paper

• Rated Voltage
• Up to 34 kV

• Size
• Custom Roll and Sheet Sizes

• Surface Treatment
• Uncoated

• Tensile Strength
• >55 MPa

• Thermal Conductivity
• 0.20 W/mK

• Thickness
• 0.05 mm to 0.76 mm

• Width
• 914 mm (Standard), Customizable

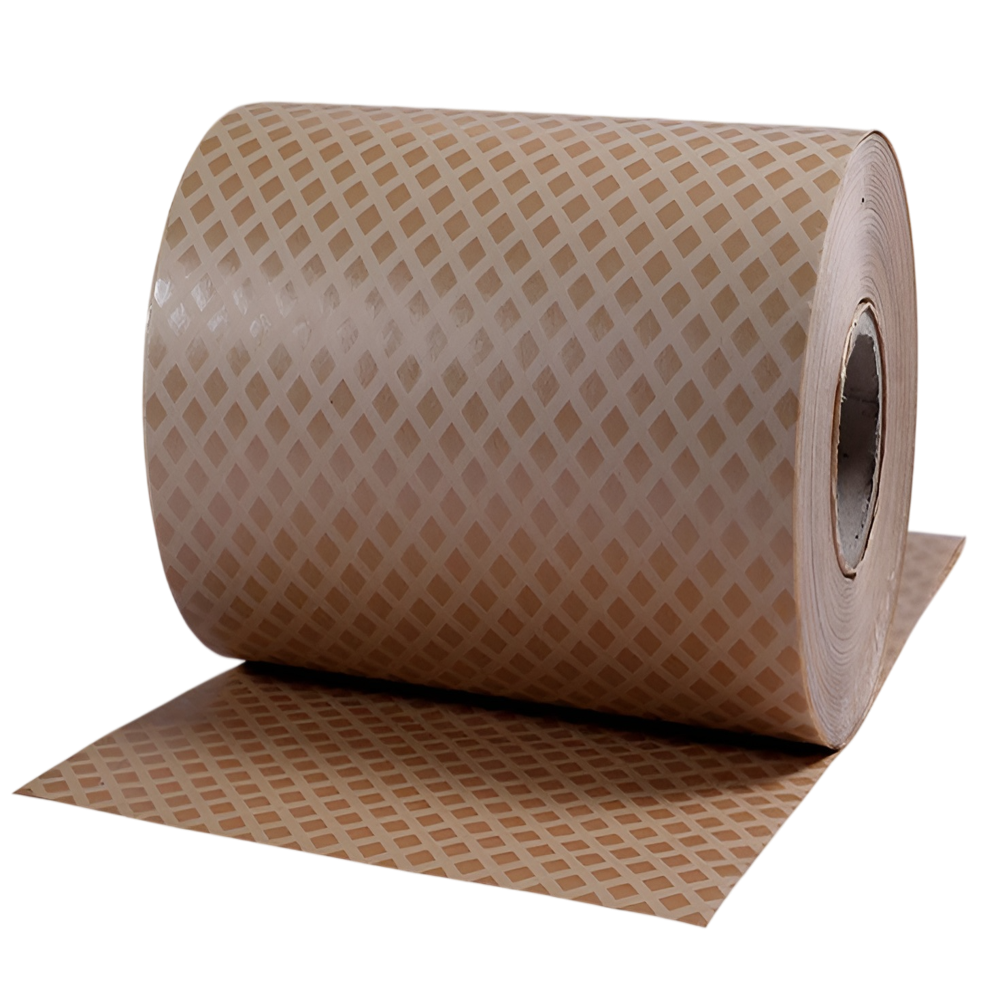

• Application
• Oil Filled Transformers

• Coating Type
• Epoxy Resin Diamond Pattern

• Color
• Pale yellow

• Material
• Electrical Grade Insulation Paper

• Max Withstanding Temperature
• Class A

• Thickness
• 1.5 Mil to Upto 10 Mil

• Application
• Power and Distribution Transformers

• Breakdown Voltage
• Above 45 kV/mm

• Coating Type
• Uncoated

• Color
• brown

• Density
• 1.3 Gram per cubic centimeter(g/cm3)

• Feature
• High dielectric strength

• Heat Conductivity
• Low

• Installation Guideline
• Install dry and dust-free

• Layer
• Single or Multi-layered

• Material
• Pre Compressed Board

• Max Withstanding Temperature
• Up to 105C

• Product Type
• Insulation Kit

• Rated Voltage
• Applicable for High Voltage

• Size
• Customized

• Surface Treatment
• Smooth finish

• Tensile Strength
• Min. 70 MPa

• Thermal Conductivity
• 0.25 W/mK

• Thickness
• 10 mm

• Width
• Varies as per requirement

• Application
• Electrical and Industrial Frameworks

• Coating Type
• Protective Coating

• Color
• Light Brown

• Feature
• Precision Molded

• Installation Guideline
• Manual Placement

• Layer
• Single Layer

• Material
• Pressboard

• Product Type
• Dovetail Spacer V Type

• Size
• Standard Size

• Surface Treatment
• Coated

• Thermal Conductivity
• Insulating

• Thickness
• 2 mm

• Color
• White

• Material
• Pressboard

• Surface Treatment
• Coated

• Thickness
• 2 mm

• Color
• Brown

• Material
• Pressboard

• Product Type
• Dovetail Strip T Type

• Size
• 2 Feet (Length)

• Application
• Motor winding insulation

• Breakdown Voltage
• High dielectric strength

• Coating Type
• Uncoated

• Color
• Brown and Off White

• Feature
• Tear-resistant

• Heat Conductivity
• Low thermal conductivity

• Installation Guideline
• Manual placement

• Layer
• Single layer

• Material
• Paper

• Max Withstanding Temperature
• Up to 120C

• Product Type
• Electrical Insulation Film

• Rated Voltage
• Reliable for low/high

• Size
• Customizable length

• Surface Treatment
• Matte

• Tensile Strength
• Moderate

• Thermal Conductivity
• Insulating

• Thickness
• Thin

• Width
• Standard roll size

• Application
• Electrical Insulation

• Feature
• High Strength

• Material
• FRP

• Size
• 3 Feet
